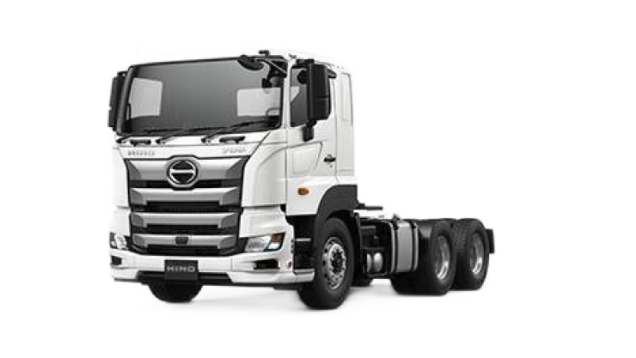

Hino 700 Series
HINO 700 2845 (ET7) 6X4 AMT
From R2Â 309Â 258
R 49Â 133 p/m
CHOOSE A MODEL:
Engine Capacity
12913
Euro Emission Status
Euro 2
Fuel Tank Capacity
390
Engine Oil Cooler
Standard
Maximum Power (kW @ r/min)
331@1800
Maximum Torque (Nm @ r/min)
2157@1400
Engine Model
E13C-BF
Engine Make
Hino
4 Stroke Compression Ignition
Standard
Aspiration
Turbo Intercooled
Engine Capacity (cc)
12913
Compression Ratio
11.7
Configuration
6 Cyl In-Line
Euro Emission Status
Euro 2
Firing Order
1-4-2-6-3-5
Injector System
Electronic Control Common Rail
Maximum Engine Speed (rpm)
2300
Number of Main Bearings
7
Number of Valves per Cylinders
4
Valve Configuration
Overhead Camshaft
Type of Cylinders
Dry Liners
Maximum Output (kW)
331
Maximum Torque (Nm)
2157
Attachment
10 Stud ISO Fixing
No of Wheels Including Spare
11
Tyre Construction
Radial Tubeless
Front Tyre Size
315-80R22.5
Wheel Type
Single Piece Steel
Suspension
Steel
Rear Tyre Size
315-80R22.5
Rear Wheel Size
22.5 x 9.00
Front Overhang (mm)
1400
Rear Overhang (mm)
945
Rear Structure (mm)
2035
Cab to Axle (mm)
3190
Cab Width (excl. mirrors - mm)
2490
Frame Height Rear Axle (mm)
1090
Front Track (mm)
2030
Max. Homologated Body Width (mm)
2600
Minimum Ground Clearance (mm)
255
Overall Length (mm)
6845
Overall Vehicle Height (mm)
3025
Rear Track (mm)
1825
Width Across Rear Wheels (mm)
2485
Wheel Base (FAS+WB+RAS - mm)
3150+1350
Fuel Tank Capacity (L)
390
Frame Width Rear (Outside - mm)
840
Number of tanks
2
Fuel Sub Tank Capacity (L)
450
Colour
Glacier White
Attachment
10 Stud ISO Fixing
No of Wheels Including Spare
11
Tyre Construction
Radial Tubeless
Front Tyre Size
315-80R22.5
Wheel Type
Single Piece Steel
Suspension
Steel
Rear Tyre Size
315-80R22.5
Rear Wheel Size
22.5 x 9.00
Front Airbag(s)
Standard Driver + Passenger
Airconditioner
Auto
Model
MF78IR
Make
Hino
Type
Power Assisted
Shock Absorbers
Standard
ABS
Standard
Brake System - Front
Drum
Brake System - Rear
Drum
Steering Column
Tilt and Telescopic
Turning Radius Between Kerbs (mm)
7200
Turning Radius Between Walls (mm)
8100
Key Activated Central Locking
Standard
Electric Windows
Driver + Passenger
EBS
Standard
ASR
Standard
PCS
Standard
ES Start System
Standard
VSC
Standard
Dual Circuit
Standard
Storage Facilities
Standard
Engine Capacity
12913
Euro Emission Status
Euro 2
Fuel Tank Capacity
390
Engine Oil Cooler
Standard
Maximum Power (kW @ r/min)
331@1800
Maximum Torque (Nm @ r/min)
2157@1400
Engine Model
E13C-BF
Engine Make
Hino
4 Stroke Compression Ignition
Standard
Aspiration
Turbo Intercooled
Engine Capacity (cc)
12913
Compression Ratio
11.7
Configuration
6 Cyl In-Line
Euro Emission Status
Euro 2
Firing Order
1-4-2-6-3-5
Injector System
Electronic Control Common Rail
Maximum Engine Speed (rpm)
2300
Number of Main Bearings
7
Number of Valves per Cylinders
4
Valve Configuration
Overhead Camshaft
Type of Cylinders
Dry Liners
Maximum Output (kW)
331
Maximum Torque (Nm)
2157
Attachment
10 Stud ISO Fixing
No of Wheels Including Spare
11
Tyre Construction
Radial Tubeless
Front Tyre Size
315-80R22.5
Wheel Type
Single Piece Steel
Suspension
Steel
Rear Tyre Size
315-80R22.5
Rear Wheel Size
22.5 x 9.00
Front Overhang (mm)
1400
Rear Overhang (mm)
945
Rear Structure (mm)
2035
Cab to Axle (mm)
3190
Cab Width (excl. mirrors - mm)
2490
Frame Height Rear Axle (mm)
1090
Front Track (mm)
2030
Max. Homologated Body Width (mm)
2600
Minimum Ground Clearance (mm)
255
Overall Length (mm)
6845
Overall Vehicle Height (mm)
3025
Rear Track (mm)
1825
Width Across Rear Wheels (mm)
2485
Wheel Base (FAS+WB+RAS - mm)
3150+1350
Fuel Tank Capacity (L)
390
Frame Width Rear (Outside - mm)
840
Number of tanks
2
Fuel Sub Tank Capacity (L)
450
Colour
Glacier White
Attachment
10 Stud ISO Fixing
No of Wheels Including Spare
11
Tyre Construction
Radial Tubeless
Front Tyre Size
315-80R22.5
Wheel Type
Single Piece Steel
Suspension
Steel
Rear Tyre Size
315-80R22.5
Rear Wheel Size
22.5 x 9.00
Front Airbag(s)
Standard Driver + Passenger
Airconditioner
Auto
Model
MF78IR
Make
Hino
Type
Power Assisted
Shock Absorbers
Standard
ABS
Standard
Brake System - Front
Drum
Brake System - Rear
Drum
Steering Column
Tilt and Telescopic
Turning Radius Between Kerbs (mm)
7200
Turning Radius Between Walls (mm)
8100
Key Activated Central Locking
Standard
Electric Windows
Driver + Passenger
EBS
Standard
ASR
Standard
PCS
Standard
ES Start System
Standard
VSC
Standard
Dual Circuit
Standard
Storage Facilities
Standard
